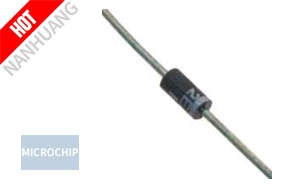

JANS1N5804US Images
- Manufacturer: Microchip
- Category: Discrete Semiconductor Products~Diodes - Rectifiers - Single Package / Case: A, Axial
- Description: RECTIFIER DIODE
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
JANS1N5804US Specifications:
- Manufacturer Product Number: JANS1N5804US
- Mfr: Microchip Technology
- Detailed Description: RECTIFIER DIODE
- Product Category: Discrete Semiconductor Products~Diodes - Rectifiers - Single
- Package: Bulk
- Series: Military, MIL-PRF-19500/477
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 975 mV @ 2.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 150 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: A, Axial
- Operating Temperature - Junction: -65°C ~ 175°C
- JANS1N5804US Microchip, RECTIFIER DIODE, Discrete Semiconductor Products~Diodes - Rectifiers - Single
JANS1N5804US, Microchip authentic parts in stock from Microchip authorized distributors, order today, can ship immediately.
