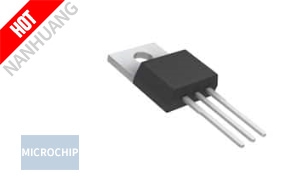

APT50GF120B2RG Images
- Manufacturer: Microchip
- Category: Discrete Semiconductor Products~Transistors - IGBTs - Single Package/Case: TO-247-3 Variant
- Description: IGBT 1200V 135A 781W TMAX
- COMPETITIVE PRICE and DELIVERY TIME
- Order with confidence, there are no lead times for in-stock products.
Download Datasheet (PDF)
APT50GF120B2RG Specifications:
- MfrPart.: APT50GF120B2RG
- Mfr: Microchip Technology
- Description: IGBT 1200V 135A 781W TMAX
- Product Category: Discrete Semiconductor Products~Transistors - IGBTs - Single
- Package: Tube
- Series: -
- PartStatus: Active
- IGBTType: NPT
- Voltage-CollectorEmitterBreakdown(Max): 1200 V
- Current-Collector(Ic)(Max): 135 A
- Current-CollectorPulsed(Icm): 150 A
- Vce(on)(Max)@VgeIc: 3V @ 15V, 50A
- Power-Max: 781 W
- SwitchingEnergy: 3.6mJ (on), 2.64mJ (off)
- InputType: Standard
- GateCharge: 340 nC
- Td(on/off)@25°C: 25ns/260ns
- TestCondition: 800V, 50A, 1Ohm, 15V
- ReverseRecoveryTime(trr): -
- OperatingTemperature: -55°C ~ 150°C (TJ)
- MountingType: Through Hole
- Package/Case: TO-247-3 Variant
- APT50GF120B2RG Microchip, IGBT 1200V 135A 781W TMAX, Discrete Semiconductor Products~Transistors - IGBTs - Single
APT50GF120B2RG, Microchip authentic parts in stock from Microchip authorized distributors, order today, can ship immediately.
